CAT.8.2 network cable SC-Mercator CPR & GHMT certified

Great for demanding industrial and high-speed networks

“With our new CAT.8.2 cable, we are consistently focusing on innovation and future-proofing. As a company, we strive to always have our finger on the pulse – we continuously monitor market developments and technological trends. We place particular emphasis on maximum performance while ensuring backward compatibility with previous cable generations. This ensures that our solutions can be used reliably in both modern and existing infrastructures.”

Maximilian Blanck
CEO

The Transrapid among the network cables …

nows how to impress with a bandwidth of up to 40 Gbit/s and a frequency of 2.000 MHz. This makes the new CAT installation cable the perfect choice for high-speed structured cabling networks in data centers, medical technology or military communication.

The CAT.8.2 cable (art. no. 580-0828FC) offers maximum safety due to its halogen-free, LSZH (Low Smoke Zero Halogen) jacket. It meets the strict requirements of CPR fire protection class B2ca (difficult to ignite, low heat release) and complies with the IEC 60332-1-2 and IEC 60754-1/2 standards.

Its double shielding – consisting of individually shielded wire pairs (PimF) and an overall copper braiding – ensures an interference-free transmission even in challenging environments. Whether Power over Ethernet (PoE/PoE+/PoE++) with up to 100 watts, VoIP or data transmissions: the SC-Mercator guarantees maximum reliability.

Another highlight is the compatibility with GG45 and AR45 connectors in addition to the standard RJ45 interface, which allows for additional flexibility when selecting the infrastructure.

The cable meets all requirements of application classes 1 and 2 (CAT8.1 and CAT8.2), which provide for a maximum link length of 30 m (98.4 ft.) and is also downward compatible with all lower network classes. Therefore, it also complies with categories CAT.7a, CAT.7, CAT.6a, CAT.6, CAT5e and CAT.5.

Owing to its GHMT certification, the SC-Mercator offers a safe investment for future-proof networks. It combines maximum performance with security and flexibility – an excellent solution for anyone who values top-quality network technology.

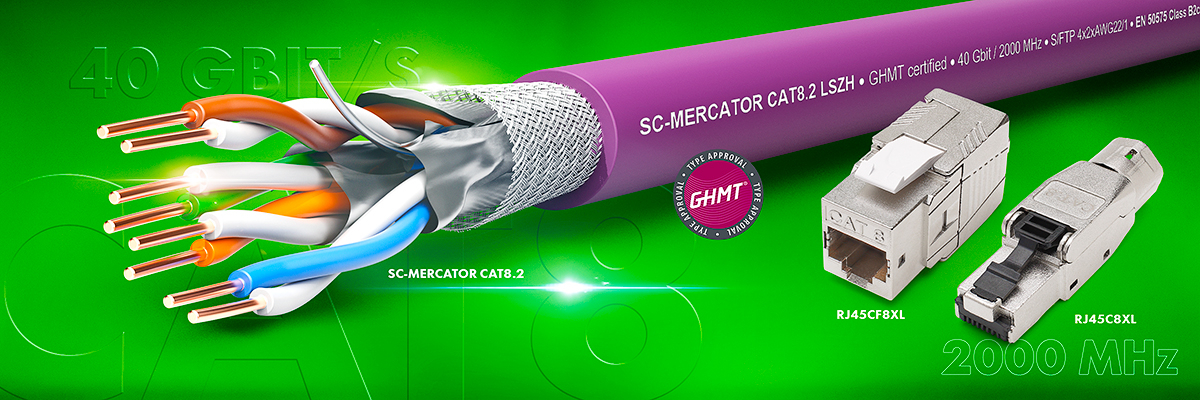

CAT.8.2 bulk cable and matching RJ45 connectors

CAT.8.2 40Gbit/s 2000 MHz SC-Mercator, B2ca, GHMT, red lilac

580-0828FC

The Transrapid among network cablessupports a bandwidth of up to 40 Gbit/s and is suitable for setting up high-speed Ethernet networks in building cabling. The CAT.8 network cable in the halogen-free LSZH jacket impresses with large performance reserves and excellent quality, among others to meet the standards IEC 60332-1-2, IEC 60754-1/2, IEC 61034-1/2 as well as the high fire protection class B2ca (flame retardant, low heat release). It has a high-quality 2-fold shielding of individually shielded wire pairs (PimF) plus overall braiding of tinned copper and is suitable for applications up to a transmission frequency of 2000MHz, as well as Power over Ethernet (PoE/PoE+/POE++), the transmission of digital and analog signals, video, data, voice and VoIP (Voice over IP). The cable meets all requirements of application classes 1 and 2 (CAT8.1 and CAT8.2), which provide for a link length of max. 30 m, and is also downward compatible with all lower network classes. Thus, the categories CAT.7a, CAT.7, CAT.6a, CAT.6, CAT5e and CAT.5 are also met.Advantages:GHMT-certifiedFast transfer rates of up to 40 Gb/sTransmission frequency up to 2000 MHzPOE++High fire protection class B2caMiscellaneous:compatible with the GG45 and AR45 connector formatsSuitable connectors: RJ45C8XL and RJ45CF8XLApplication:medical technologymilitary communication technologyHigh-speed networks for data centers and demanding industrial applications

€6.20*

RJ45 CAT.8.1, 8-pole , metal-, IDC-male connector, gold plated contact(s), straight, grey

RJ45C8XL

Advantages:four different ways for cable outputGHMT-certifiedtool-free mountingMiscellaneous:without strain reliefApplication:suitable for litz wires and solid wires AWG26 to AWG22max. data rate up to 40 Gbit/smax. transmission frequency of 2000 MHzonly for permanent installation

€13.03*

RJ45 CAT.8.1, 8-pole , metal-, IDC-male connector, gold plated contact(s), straight, grey

RJ45CF8XL

Advantages:GHMT-certifiedtool-free mountingApplication:suitable for litz wires and solid wires AWG26 to AWG22max. data rate up to 40 Gbit/smax. transmission frequency of 2000 MHz

€21.50*

Detailed general information about CAT cables and an overview of our product range can be found on our CAT information page.
